What Is Table Saw Rip Capacity? Your Guide to Choosing Right

What is table saw rip capacity? It’s the maximum width of a board you can cut parallel to the grain (rip) using the fence as a guide. This article explains rip capacity explained, how it’s measured, why it matters, and how to choose the right table saw based on your needs.

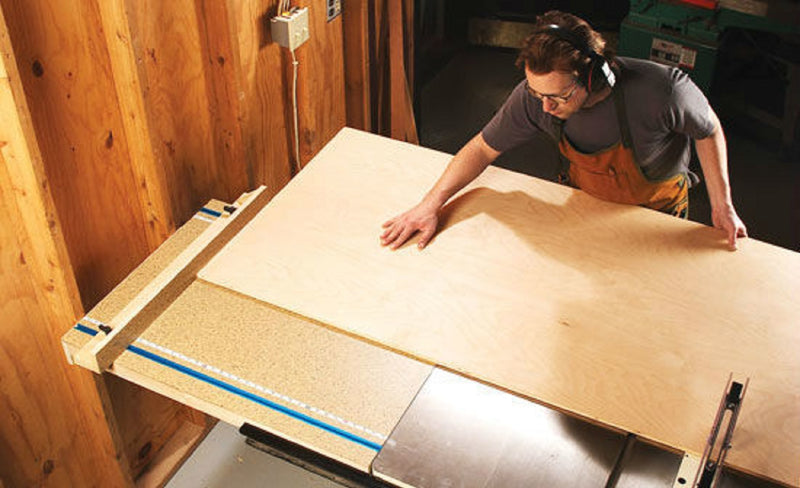

Image Source: landmarktools.com

Fathoming Table Saw Rip Capacity

Table saw rip capacity is a crucial specification for woodworkers. It dictates the size of projects you can handle. It is the distance from the blade to the table saw fence capacity when the fence is at its furthest right position. It’s not just a number; it’s a limitation or an opportunity, depending on how you view it.

Why Rip Capacity Matters

• Project Size: Determines the maximum width of boards you can rip.
• Efficiency: Allows for efficient cutting of wide boards, reducing the need for multiple passes.
• Safety: A sufficient maximum ripping width enhances safety by providing adequate support for the workpiece.

Rip Capacity Explained: The Key Components

To fully grasp rip capacity, you must understand the parts of a table saw that affect it:

• Table Top: The surface on which you place the wood.
• Blade: The circular saw blade that does the cutting.
• Fence: A guide that runs parallel to the blade, ensuring straight cuts. The table saw rip fence distance is the crucial measurement.
• Rails: The metal bars that the fence slides along.

The Significance of Table Saw Throat Capacity

While not directly related to rip capacity, table saw throat capacity also impacts the types of cuts you can make. The throat plate is the insert around the blade. A wider throat opening may be needed for using dado blades, which create wider grooves.

How Rip Capacity is Measured

Rip capacity measurement is straightforward:

1. Position the fence as far to the right of the blade as it will go.
2. Measure the distance from the right-most edge of the blade to the inside edge of the fence. This distance is your rip capacity.
3. This is the table saw cutting width.

It’s important to note that this measurement represents the maximum width you can rip. You can always cut narrower pieces.

Standard vs. Large Rip Capacity Table Saws

Table saws come in various sizes, each offering different rip capacities. Here’s a breakdown:

Table Saw Type	Standard Rip Capacity (Right of Blade)	Typical Uses
Jobsite/Portable Saws	24-30 inches	DIY projects, trim work, on-site construction.
Contractor Saws	30-36 inches	General woodworking, larger projects.
Cabinet Saws	30-50+ inches	Professional woodworking, furniture making, handling sheet goods.
Hybrid Saws	30-50 inches	A balance between contractor and cabinet saws, suitable for advanced hobbyists.

Standard Table Saw Rip Capacity: What to Expect

Most entry-level and portable table saws offer a standard table saw rip capacity of 24 to 30 inches. This is usually sufficient for basic woodworking tasks, such as cutting boards for furniture frames or smaller DIY projects.

The Advantages of a Large Rip Capacity Table Saw

A large rip capacity table saw (30 inches or more) offers several benefits:

• Handling Sheet Goods: Easily cut plywood, MDF, and other large sheet materials.
• Complex Projects: Allows for intricate cuts and larger project components.
• Increased Efficiency: Reduces the need to break down large boards before cutting.
• Resawing: Wider rip capacity allows for safer and more controlled resawing.

Choosing the Right Rip Capacity: A Table Saw Rip Capacity Guide

Selecting the appropriate rip capacity depends on your woodworking needs and the types of projects you typically undertake.

Assessing Your Needs

Before buying, ask yourself these questions:

• What types of projects do I usually work on? (Small crafts, furniture, cabinetry?)
• Do I work with sheet goods (plywood, MDF)?
• What is the widest board I am likely to cut?
• What’s my budget?

Matching Rip Capacity to Project Types

Here’s a general guideline:

• Small Crafts and DIY: 24-30 inches is usually sufficient.
• General Woodworking: 30-36 inches provides more flexibility.
• Furniture Making and Cabinetry: 36 inches or more is recommended, especially if working with sheet goods.
• Professional Woodworking: 50+ inches for maximum versatility.

Factors Beyond Rip Capacity

While rip capacity is essential, consider other table saw features:

• Motor Power: A more powerful motor is necessary for cutting thicker, denser materials.
• Fence Quality: A sturdy, accurate fence is crucial for making precise cuts.
• Dust Collection: An efficient dust collection system keeps your workspace clean and safe.
• Safety Features: Look for features like blade guards, anti-kickback pawls, and riving knives.
• Table Material: Cast iron tables provide greater stability and vibration damping than aluminum tables.
• Blade Quality: A high-quality blade is essential for achieving clean, accurate cuts.

Optimizing Your Existing Table Saw’s Rip Capacity

If you already own a table saw and find its rip capacity limiting, consider these options:

• Aftermarket Fences: Upgrade to a fence system with a longer reach.
• Outfeed Tables: Provide additional support for long boards.
• Careful Planning: Optimize your cutting layout to minimize the need for wide rips.
• Alternative Tools: Consider using a circular saw with a straight edge for initial cuts on large sheet goods.
• Extension Tables: Adding an extension table to the right side of the saw can significantly increase rip capacity.

Common Mistakes to Avoid

• Ignoring Rip Capacity: Don’t buy a table saw without considering its rip capacity and your needs.
• Overestimating Capacity: Never exceed the stated rip capacity of your saw.
• Using Damaged Fences: A damaged or misaligned fence can lead to inaccurate and dangerous cuts.
• Neglecting Safety: Always use proper safety precautions when operating a table saw.

Table Saw Safety Considerations

Operating a table saw can be dangerous if safety precautions are ignored. Always:

• Wear safety glasses and hearing protection.
• Use a push stick or push block when cutting small or narrow pieces.
• Keep your hands away from the blade.
• Never reach over the blade.
• Ensure the blade guard and anti-kickback pawls are properly installed.
• Be aware of the potential for kickback.
• Disconnect the power before making any adjustments or changing the blade.

Frequently Asked Questions (FAQ)

Q: Can I increase the rip capacity of my table saw?

A: Yes, you can sometimes increase it by adding extension tables or upgrading to an aftermarket fence system with a longer reach.

Q: What is the difference between rip capacity and crosscut capacity?

A: Rip capacity is the maximum width you can cut parallel to the grain using the fence. Crosscut capacity refers to the maximum width you can cut perpendicular to the grain, typically using a miter gauge.

Q: How important is rip capacity for cutting plywood?

A: Very important! Plywood sheets are typically 48 inches wide, so a table saw with at least a 24-inch rip capacity is essential for breaking them down. However, for efficiently and safely cutting large plywood sheets, a 30″+ rip capacity is highly recommended.

Q: What is the ideal rip capacity for a beginner woodworker?

A: A 24-30 inch rip capacity is a good starting point for beginners. It’s sufficient for most basic projects.

Q: How do I maintain my table saw fence to ensure accurate rip cuts?

A: Regularly clean the fence and rails. Check for any damage or misalignment. Adjust the fence as needed to ensure it’s parallel to the blade. Use a reliable square to verify its accuracy.

Q: Is a higher rip capacity always better?

A: Not necessarily. A higher rip capacity may be beneficial, but it can also increase the size and cost of the table saw. Choose a rip capacity that aligns with your specific woodworking needs and budget.
