Is your powerful gaming rig sounding more like a jet engine taking off? Do you worry that your expensive components are slowly cooking inside that metal box?
Keeping your PC cool is super important, but figuring out exactly how to arrange those case fans can feel like solving a complex puzzle. Should you push air in, pull air out, or mix it up? Getting the airflow wrong means higher temperatures, slower performance, and maybe even a shorter lifespan for your precious hardware. It’s frustrating when you just want your computer to run smoothly!
This guide cuts through the confusion. We will show you simple, effective ways to set up your case fans for the best possible cooling performance. You will learn the secrets to silent, chill operation, even when you are running the most demanding games or programs.
Ready to transform your PC’s internal climate control? Let’s dive into the world of positive, negative, and balanced airflow configurations and find the perfect setup for your machine.
Top Pc Case Fan Configuration Recommendations

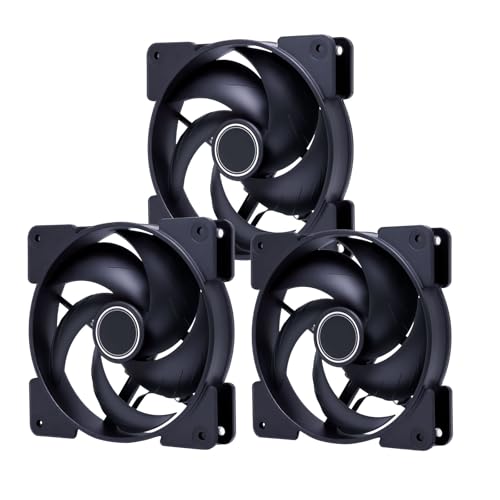

- High Performance Cooling Fan: The design of nine fan blades, the maximum speed reaches 1200 RPM, and it is connected to the motherboard through the 3 PIN interface, providing a good cooling effect for the case
- Low Noise: Every fans is equipped with four soft silicone cushions that can absorb vibration at high speeds. The maximum noise is only 32.1 dBA. Keep the case in a relatively quiet environment when working
- Hydraulic Bearing Design: High-quality bearings can make the fan rotate more stably, reduce noise, and prolong its service life. Each fan can work an average of 30,000 hours
- 【Perfect Match】The PC fan can be used not only as a case fan, but is also suitable for use with a cpu cooler to create a cooling effect together, which can take away the dry heat from the case and the high temperature generated by the CPU in operation, allowing for maximum cooling; Ideal for cases, radiators and CPU coolers.
- [Excellent LED light] The high-brightness LED atomizing argb fan blade can effectively reflect the light, making the ARGB lighting effect softer, and it matches the cooler and case more perfectly. Up to 17 modes of light effects with ARGB support, color can be managed and synchronized through the port on motherboard.
- 【High Performance Cooling Fan】 Automatic speed control of the motherboard through the 4PIN PWM fan cable interface, which can determine the speed according to the temperature of the motherboard, with a maximum speed of 1550RPM. Configured with up to 55cm of cable for PWM series control of fans, ideal for cases and CPU coolers.
- [Cooling ARGB PC Case from ANSAITE G8 ]Reason---G8 upgraded exclusive precision-engineered mesh panel design ,and computer case comes pre-installed with 6 high-quality PWM ARGB fans(supports up to 10 *120mm case fans). G8 stands out with its stunning design, equipped with a 270° panoramic tempered glass side panel, providing stunning visual effects and strong airflow. G8 offers an ultimate comfortable experience in office and gaming scenarios, making it the most cost-effective "Black Knight" on the market!
- [Pre-installed 6 PWM ARGB Fans] G8 Rear panel pre-installed with 1×120mm forward-blade fans, bottom pre-installed with 3×120mm reverse-blade fans (F-A12 ARGB PWM), side panel pre-installed with 2×120mm reverse fans (reverse-blade design combines aesthetics with intake cooling efficiency).
- [Powerful Airflow Cooling]G8 PC Case utilizes a dual-channel airflow design—horizontal for CPU, vertical for GPU—to deliver focused and efficient cooling. with the top serving as the main exhaust, create a vertical airflow design. Both the top and bottom of G8 mid-tower ATX case feature dust filters, maintaining cooling performance while minimizing internal dust accumulation.

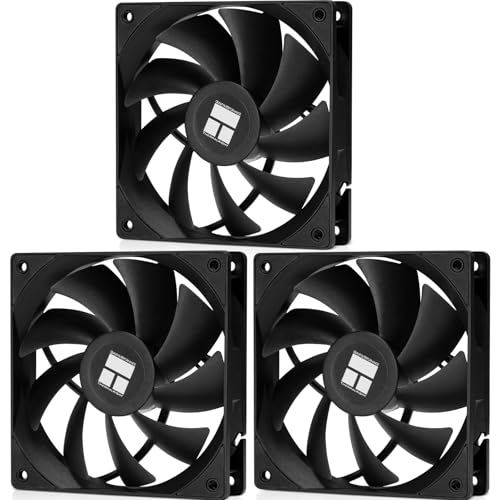

- 【High Performance Cooling Fan】 Automatic speed control of the motherboard through the 4PIN PWM fan cable interface, which can determine the speed according to the temperature of the motherboard, with a maximum speed of 1550RPM. Configured with up to 55cm of cable for PWM series control of fans, ideal for cases and CPU coolers.
- 【Quality Bearings】The carefully developed quality S-FDB bearings solve the problem of pc cooling fan blade shaking in lifting mode, keeping fan noise to a minimum while providing maximum cooling performance when needed and extending the life of the fan.
- 【Vibration reduction and low noise】 The case fan is equipped with four soft material silicone corner pads on all four sides, which can reduce the vibration and friction caused by the rotation of the fan, perfectly reducing noise and allowing low noise operation, so that cooling can be carried out in low noise.
- 【High Performance Cooling Fan】 Automatic speed control of the motherboard through the 4PIN PWM fan cable interface, which can determine the speed according to the temperature of the motherboard, with a maximum speed of 1550RPM. Configured with up to 55cm of cable for PWM series control of fans, ideal for cases and CPU coolers.
- 【Quality Bearings】The carefully developed quality S-FDB bearings solve the problem of pc cooling fan blade shaking in lifting mode, keeping fan noise to a minimum while providing maximum cooling performance when needed and extending the life of the fan.
- [Excellent LED light] The high-brightness LED atomizing argb fan blade can effectively reflect the light, making the ARGB lighting effect softer, and it matches the cooler and case more perfectly. Up to 17 modes of light effects with ARGB support, color can be managed and synchronized through the port on motherboard.
- 3-pack 120mm reverse PC case fans with PWM speed control and ARGB lighting help support cleaner airflow presentation and a more organized desktop build
- Daisy-chain fan connection helps simplify wiring and installation, making these fans a practical choice for PC cases, radiators, and airflow-focused builds
- Designed for users who want a stronger ARGB presentation, this version delivers a fuller lighting look for a more vivid PC build setup
- Infinity Design: Infinity Mirror Design case fans provide Infinity visualization of the center and sides of the fan, allowing you to experience stunning multi-layered effects
- Adjustable Lighting Effect: ARGB lighting on fan blades and frame, creating stunning lighting effect for the PC chassis
- Optimized Cooling Performance: Nine fan blades plus PWM control allow fans to adjust fan speed from 800 - 1600 RPM ± 10% to provide optimal cooling performance
- 【High Performance Cooling Fan】 Automatic speed control of the motherboard through the 4PIN PWM fan cable interface, which can determine the speed according to the temperature of the motherboard, with a maximum speed of 1550RPM. Configured with up to 55cm of cable for PWM series control of fans, ideal for cases and CPU coolers.
- 【Quality Bearings】The carefully developed quality S-FDB bearings solve the problem of pc cooling fan blade shaking in lifting mode, keeping fan noise to a minimum while providing maximum cooling performance when needed and extending the life of the fan.
- 【Vibration reduction and low noise】 The case fan is equipped with four soft material silicone corner pads on all four sides, which can reduce the vibration and friction caused by the rotation of the fan, perfectly reducing noise and allowing low noise operation, so that cooling can be carried out in low noise.
The Ultimate Buying Guide: Mastering PC Case Fan Configuration
A good PC needs good airflow. Case fans move hot air out and pull cool air in. This keeps your computer running fast and lasting longer. Choosing the right fans and putting them in the right spots matters a lot. This guide helps you pick the best setup for your needs.
Key Features to Look For
When shopping for PC case fans, several features directly affect performance and noise.
1. Fan Size (Measurement)
- 120mm and 140mm are standard. Bigger fans usually move more air at lower speeds. This means they are often quieter.
- Check your PC case manual to see what sizes it supports. Do not try to force a fan that does not fit.
2. Airflow (CFM)
- CFM (Cubic Feet per Minute) measures how much air the fan moves. Higher CFM means better cooling power.
- If you overclock your CPU or use a very powerful graphics card, look for fans with higher CFM ratings.
3. Static Pressure (mmH2O)
- Static pressure tells you how well a fan pushes air through obstacles, like radiator fins or dust filters.
- If you plan to mount fans on a radiator (for liquid cooling), prioritize high static pressure. For simple case intake/exhaust, CFM is usually more important.
4. Noise Level (dBA)
- Noise is measured in decibels (dBA). Lower numbers mean quieter operation.
- For a quiet office PC, aim for fans under 25 dBA. Gaming rigs can tolerate slightly louder fans (28-30 dBA) because headset noise covers it up.
5. Bearing Type
- The bearing affects how long the fan lasts and how noisy it gets over time.
- Fluid Dynamic Bearings (FDB) are the best choice; they offer long life and quiet running. Sleeve bearings are cheaper but wear out faster.
Important Materials and Build Quality
The materials used determine durability and vibration control.
- Fan Blades: Most blades use strong plastic like Polycarbonate. Quality blades are balanced well to reduce wobble.
- Frame: A sturdy frame prevents the fan from flexing under pressure. Look for solid construction that dampens vibrations.
- Cables and Connectors: Fans connect using either 3-pin or 4-pin (PWM) connectors. PWM fans allow the motherboard to precisely control the fan speed, which is a major quality upgrade.
Factors That Improve or Reduce Quality
Good configuration drastically improves cooling quality. Poor setup wastes money on good fans.
Improving Quality (Best Practices)
- Positive Pressure: You want more cool air entering the case than hot air leaving. This slight pressure pushes dust out through small cracks, keeping filters clean.
- Straight Air Path: Do not let intake and exhaust fans blow directly into each other. Position them to create a clear path from front/bottom to back/top.
- Use PWM Control: Connect all fans to your motherboard or a dedicated fan controller. This lets the fans spin slower when the PC is idle, reducing noise significantly.
Reducing Quality (Common Mistakes)
- Negative Pressure: Having too many exhaust fans creates a vacuum. Dust gets sucked in through every tiny hole in the case, making cleaning difficult.
- Fan Obstruction: Stuffing a fan right against a hard drive cage or thick dust filter reduces its effective airflow.
- Mixing Fan Types: Using a mix of very loud, cheap fans with quiet, expensive ones results in an overall noisy system.
User Experience and Use Cases
Your PC usage dictates the best fan setup.
Use Case 1: The Silent Workstation (Web Browsing/Documents)
- Goal: Maximum silence.
- Configuration: Use large, low-speed 140mm fans. Set a very gentle intake at the front and a single slow exhaust at the rear. Keep speeds low (under 1000 RPM) if possible.
Use Case 2: The Mid-Range Gaming PC
- Goal: Good cooling without excessive noise.
- Configuration: Use a standard 2-intake, 1-exhaust setup (e.g., two 120mm fans in front, one 120mm fan in back). Use PWM control to ramp up speed only when the GPU or CPU hits 60°C.
Use Case 3: The High-Performance/Overclocked Rig
- Goal: Absolute lowest temperatures possible.
- Configuration: Implement a full push/pull setup if using liquid cooling radiators. Use three intake fans at the front/bottom and three exhaust fans at the top/rear. Prioritize high CFM and static pressure over low noise.
Frequently Asked Questions (FAQ)
Q: What is the best standard fan setup for a new PC?
A: The most common and effective setup is three intake fans at the front and one exhaust fan at the back. This creates a clear path for cool air directly over the main components.
Q: Should I put fans on the top of the case?
A: Yes, top fans are excellent exhaust. Since hot air naturally rises, mounting fans on the top panel helps pull that heat straight out of the case effectively.
Q: What is PWM control, and why do I need it?
A: PWM (Pulse Width Modulation) uses a fourth wire on the connector. It lets your motherboard communicate exactly how fast the fan should spin. This means fans run quietly when you are just browsing and speed up automatically when you start a demanding game.
Q: Does fan orientation matter?
A: Yes, orientation is critical. Intake fans should have the sticker/label facing outward (blowing air in). Exhaust fans should have the sticker facing inward (blowing air out).
Q: Are expensive fans always better?
A: Not always, but quality matters a lot for noise and lifespan. A mid-range fan with FDB bearings will outperform a cheap fan that uses sleeve bearings, even if the cheap fan has higher stated CFM.
Q: Can I mix 120mm and 140mm fans?
A: You can, provided your case supports both sizes in the locations you want to use them. Generally, mixing sizes is fine, but try to keep the intake fans the same size for balanced airflow.
Q: How often should I clean my case fans?
A: If you use dust filters, clean them every 3 to 6 months. If you do not use filters, you might need to carefully dust the fan blades every month or two to maintain good airflow.
Q: Does the number of fans matter more than the size?
A: Size and number work together. Two high-quality 140mm fans often move more air quietly than four smaller, lower-quality 120mm fans. However, more fans allow you to run them all slower while achieving the same cooling goal.
Q: How do I achieve positive air pressure?
A: Set your intake CFM slightly higher than your exhaust CFM. For example, if your front intake moves 100 total CFM, set your rear/top exhaust to only move 80 CFM. The extra 20 CFM escapes through cracks, pushing dust away.
Q: Should I buy RGB fans?
A: RGB lights only change how the case looks; they do not change cooling performance. If you like the look, buy them, but ensure the non-RGB version of the same fan model offers the performance you need.
